Car Dipping: The 3-Tank Process That Strips Paint and Kills Rust on a Whole Car Body
Table of Contents
📋 What You'll Learn
This guide walks you through car dipping: the 3-tank process that strips paint and kills rust on a whole car body with detailed instructions.
A 1970s muscle car body looks indestructible until you check the rust under the rear quarters. Sandblasting warps thin sheet metal. A chemical dip strips it to bare steel without distorting a single panel — if you run the chemistry correctly. Here is the 3-tank process restoration shops have used for sixty years, the chemicals each tank needs, and what it costs to run your own setup versus outsourcing.
What is car dipping? The 3-tank process explained
Car dipping is a sequential 3-tank chemical immersion process used to strip paint, surface coatings, and rust from an entire car body (or large parts like frames, hoods, and engine blocks) without mechanical abrasion. Unlike sandblasting or media-blasting, which can warp thin body panels and miss seams and box sections, dipping reaches every square millimeter of metal — inside doors, inside rocker panels, inside the trunk floor — because the chemistry goes where the liquid goes.

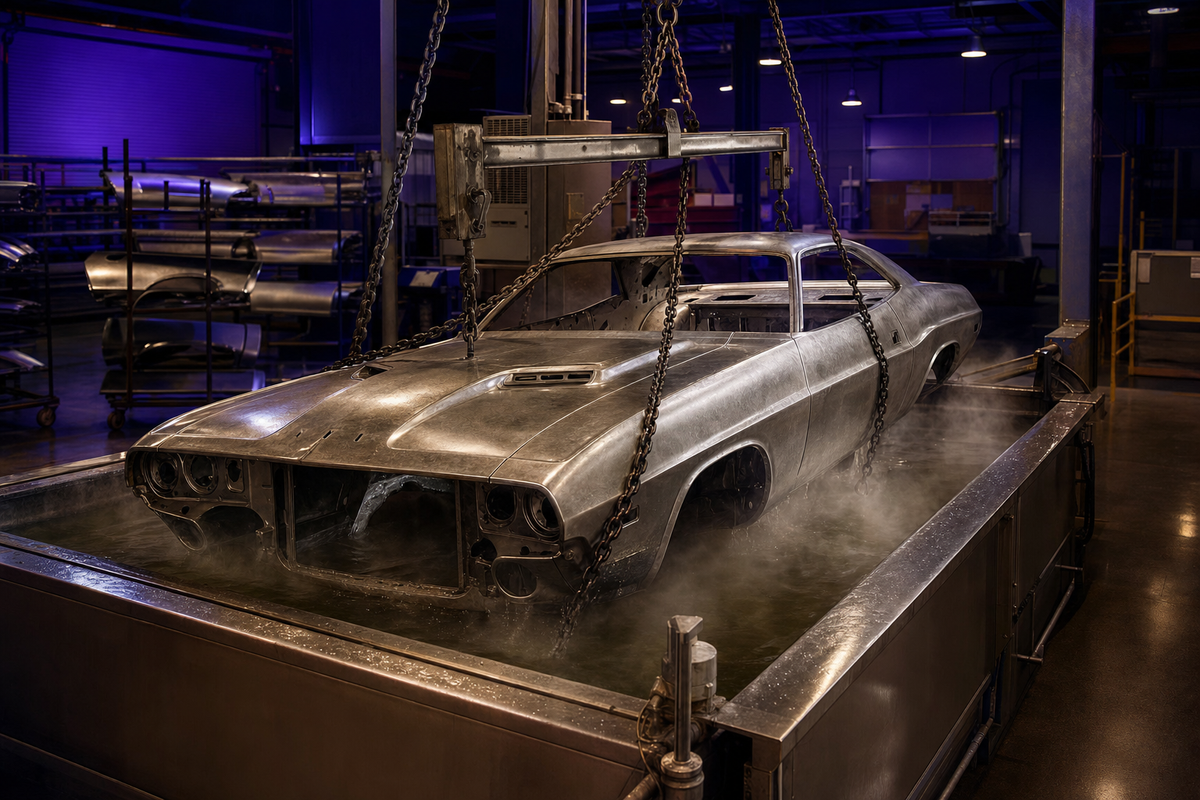

The body hangs from a rotisserie jig or overhead crane and is lowered into each tank in sequence. Most pro shops run the same three baths in the same order: caustic, then acid, then a neutralizing rinse.
Insider Cars' walkthrough of a commercial 3-tank dipping shop — you can see the body emerge between tanks for inspection. (Source: YouTube.)
| Step | Tank | Chemistry | Time | Output |
|---|---|---|---|---|
| Tank 0 (optional) | Pre-degrease bath | TSP solution or MEK wipe | 15–60 min | Removes wax, grease, undercoating residue so caustic can bite paint cleanly |
| Tank 1 | Hot caustic | NaOH 50% diluted to ~30%, 200°F | ~2 days | Strips all paint, primer, body filler, and most organic coatings to bare metal |
| Tank 2 | Acid de-rust | Phosphoric 30% or HCl 31% | ~1 day | Chemically converts iron oxide (rust) and removes residual caustic film |
| Tank 3 | Neutralize & passivate | Oxalic acid solution or alkaline rinse | 2–4 hours | Removes residual acid, passivates bare steel, leaves a primer-ready surface |
Industry note. Most shops dilute concentrated 50% NaOH membrane-grade lye to a working concentration of 25–30% in the hot tank. Adding solid lye flakes to water (never the reverse) is a legitimate alternative, but pre-diluted 50% saves the operator from a violent exotherm during makeup.
Which chemicals do you need for car dipping?
The 3-tank setup requires three industrial chemicals at minimum, plus an optional pre-degreaser. Each chemical has a specific role, a specific working concentration, and very different safety profiles. Here is the working list.
| Tank role | Chemical | Working concentration | Why this one |
|---|---|---|---|
| Tank 0 pre-degrease | Trisodium phosphate (TSP) | 4–8 oz / gal water | Saponifies grease and wax before the caustic tank so paint strip is uniform |
| Tank 0 alt (heavy soiling) | Methyl ethyl ketone (MEK) | Neat solvent wipe | Dissolves undercoating, asphalt, and silicone residue that won't come off with TSP |
| Tank 1 caustic strip | Sodium hydroxide 50% Membrane Grade | Diluted to 25–30% in water, heated to 200°F | Saponifies and lifts all organic paint, primer, and filler from steel |
| Tank 2 de-rust (primary) | Phosphoric acid 30% | Diluted to 10–25% | Converts iron oxide to iron phosphate — leaves a passivation layer ready for primer |
| Tank 2 alt (aggressive) | Hydrochloric acid 31% | Diluted to 5–10% | Faster on heavy rust but leaves no passivation and demands very fast rinse |
| Tank 3 neutralizing rinse | Oxalic acid dihydrate | 1–5% in warm water | Chelates iron, removes residual acid stains, leaves a clean bright metal |
CAS & key identifiers. Sodium hydroxide (CAS 1310-73-2), phosphoric acid (CAS 7664-38-2), hydrochloric acid (CAS 7647-01-0), oxalic acid dihydrate (CAS 6153-56-6), trisodium phosphate dodecahydrate (CAS 10101-89-0), methyl ethyl ketone (CAS 78-93-3). Spent baths fall under EPA RCRA D002 (corrosive) and must be neutralized and tested before disposal — most shops contract a hazardous waste hauler for the spent caustic and acid sludges.
Tank 1 — Hot caustic (NaOH 50%): What it does and how to run it
The caustic tank is the workhorse of the entire dipping process. Sodium hydroxide at 25–30% concentration, heated to ~200°F, saponifies organic coatings. The hot NaOH cleaves the ester and amide bonds in paint binders, primers, body fillers, and undercoating, lifting them off the steel substrate in sheets and chunks that float to the top of the bath or sink as sludge.
Bath time is typically two days for a complete strip on a heavily-coated body. A jig or rotisserie keeps the body submerged but allows controlled movement so trapped pockets (inside doors, behind quarter panels, under the rear floor) get refreshed bath. Most operators raise the body once or twice during the cycle to pressure-rinse loose paint chunks and inspect progress.
⚠ NEVER dip aluminum in caustic. Sodium hydroxide aggressively attacks aluminum, dissolving the metal and evolving hydrogen gas — a fire and explosion hazard. Aluminum body panels, aluminum trim, aluminum cylinder heads, aluminum brake parts: ALL must be removed before the caustic dip. Some early Aston Martins, certain 1960s Corvette panels, and modern aluminum-intensive bodies (Tesla X, F-150 cab) cannot be caustic-dipped at all and require alternate stripping methods.
⚠ OSHA PEL for sodium hydroxide mist: 2 mg/m³ ceiling. Hot caustic baths off-gas a fine alkaline mist that burns lung tissue and corneas. Full face shield, alkali-rated respirator (P100 cartridges with acid-gas overlay rated for caustic mist), neoprene or PVC gloves to the elbow, and rubberized splash apron are non-negotiable. A 200°F caustic splash on bare skin causes severe full-thickness burns within seconds.
Working with sodium hydroxide at industrial concentration requires the right grade. Sodium Hydroxide 50% Membrane Grade is the standard caustic for dipping operations — chlor-alkali membrane process produces a low-mercury, low-iron solution that won't contaminate the bath. Available from quarts up to 275- and 330-gallon IBC totes for production-scale tanks.
Tank 2 — Acid de-rust: Phosphoric versus hydrochloric, which acid for which job?
After the caustic strip, the body emerges bare-steel but flash-rusted — the warm wet steel oxidizes in minutes once it leaves the tank. The acid bath in Tank 2 chemically converts and removes that rust, plus any deeper rust from years of road salt and water intrusion.
Two acids dominate the de-rust step: phosphoric and hydrochloric. They work differently and have very different post-treatment requirements.
| Phosphoric Acid 30% (default) | Hydrochloric Acid 31% (aggressive) | |
|---|---|---|
| Reaction | Fe₂O₃ + H₃PO₄ → FePO₄ (iron phosphate) | Fe₂O₃ + HCl → FeCl₃ + H₂O |
| Speed | Slower — 12 to 24 hours for moderate rust | Fast — 1 to 4 hours for heavy rust |
| Aggression on bare steel | Mild — self-limiting once rust is consumed | Aggressive — will pit steel if left too long |
| Leaves passivation layer | Yes — iron phosphate is an excellent primer base | No — bare steel flash-rusts in minutes if not neutralized |
| Fumes | Minimal at room temperature | Significant HCl vapor — requires forced ventilation |
| Best for | Most restoration work, moderate surface rust | Heavy pitted rust where speed matters and an operator can supervise continuously |
For nearly every restoration project, phosphoric is the right answer. The iron phosphate conversion layer it leaves behind is the same chemistry that "rust converter" products sell at 5x the markup — you get it for free as a side effect of de-rusting. The metal comes out of Tank 2 ready for primer with no separate conversion-coating step.
Hydrochloric is reserved for heavy frame rust, deep pitting, and time-critical work where a shop is willing to live with the bare-steel-after rinse-window problem. If you pull a part from an HCl bath and don't rinse and prime within minutes, flash rust forms.
⚠ NEVER mix or combine Tank 1 caustic and Tank 2 acid contents. Spent caustic and spent acid neutralize each other — but at industrial volume this reaction releases enormous heat (exotherm) and, with HCl specifically, can evolve chlorine gas if oxidizers are present in the bath. Neutralize each spent bath separately, slowly, in dilute solution, with a hazardous waste hauler's guidance. NIOSH IDLH for HCl vapor is 50 ppm.
Shop with the right chemistry: Phosphoric Acid 30% — The Ultimate Rust Remover for default de-rust, or Hydrochloric Acid 31% Technical Grade for heavy rust where speed is the deciding factor.
Tank 3 — Rinse and passivate: Why oxalic and neutralization matter
Tank 3 is the cleanup step that determines whether your bare-steel body holds primer for years or flash-rusts on its way back to the body shop. It serves three jobs: it removes residual acid from Tank 2, it strips any iron-stain discoloration left on the steel, and it passivates the surface so flash rust doesn't bloom in the hour between Tank 3 and primer application.
Oxalic acid (1–5% solution in warm water) is the working choice. Oxalic chelates iron — it binds free iron atoms into a soluble complex that rinses away with the bath. The steel emerges bright, uniformly colored, and with a passivated surface that resists oxidation for several hours under shop conditions.
Pro tip. After Tank 3, blow the body dry with shop air immediately. Trapped water in seams, behind quarter panels, and inside box sections is where flash rust restarts the clock. Apply self-etching primer or weld-through primer within 24 hours — sooner if your shop humidity runs high.
For Tank 3 we recommend Oxalic Acid Dihydrate in 55-lb bag quantities — a single bag makes hundreds of gallons of working rinse solution and lasts most one-car restoration shops a full year.
Pro-shop vs. DIY setup: scale, safety, and what you actually need
The 3-tank process scales from a serious home garage (one car a year) up to a production restoration shop (a body a week). The chemistry is identical at every scale; what changes is the tank volume, the heating method, the ventilation, and the personal protective equipment.
Plastic pail or stainless-steel laundry tub. Dip small parts: hoods, doors, engine blocks, frames cut into sections. Hot plate heating, propane heating in an outdoor shed, or a thermostatically-controlled immersion heater. PPE: face shield, alkali respirator, elbow-length neoprene gloves. Outdoor or well-ventilated workspace mandatory.
Three 55-gallon drums or repurposed stainless-steel tanks (~50 gallons each). Body parts dipped sequentially, body shell dipped in sections (front clip, doors, rear quarters, floor pan) using an overhead crane and a rotisserie jig. Immersion heaters with thermostat control. Drum-scale chemicals: ~$2,700 total chemistry investment.
Three large stainless-steel tanks (200–500 gallons each) on a concrete pad with secondary containment. Built-in heating coils, exhaust hoods over each tank, an overhead 5-ton crane rig, and a body jig that rotates the shell through each tank. PPE: full Tyvek/PVC suits, supplied-air respirators during caustic transfer. IBC-tote chemistry: ~$17,000 startup chemistry investment, but ongoing cost per body drops to a few hundred dollars.
National dip-shop networks pick up your bare body and return it primer-ready 2–4 weeks later. Easiest path for a one-off restoration. Downsides: shipping costs and damage risk, scheduling delays, and no operator control over chemistry or timing.
What does it cost to run a car dipping operation?
The 3-tank chemistry cost scales linearly with the size of the tanks. Here is what it costs to charge each tank at Alliance Chemical pricing, in three working tiers.
| Tier | Tank 1 (NaOH 50%) | Tank 2 (Phosphoric 30%) | Tank 3 (Oxalic) | Total chemicals |
|---|---|---|---|---|
| DIY (5 gal pails) | $121 / 5 gal pail | $169 / 5 gal pail | $240 / 55 lb bag | $530 |
| Mid (55 gal drums) | $709 / 55 gal drum | $1,480 / 55 gal drum | $480 / 2 bags (110 lb) | $2,669 |
| Pro shop (IBC totes) | $3,491 / 330 gal IBC | $7,379 / 330 gal IBC | $6,200 / 40-bag pallet | $17,070 |
The unit economics that flip the buy-versus-outsource decision. Commercial dip shops charge $1,500–$3,000 per whole car body. A mid-tier ($2,669) drum-scale chemistry setup at your own shop breaks even after a single body, and most chemistry only needs make-up additions over a year of cycling. Tank construction (steel, heating elements, crane rig) is a separate one-time capital cost, but for shops doing more than two bodies a year, in-house dipping is a clear win.
Common car dipping mistakes and how to avoid them
Most failed dipping jobs are not chemistry failures — they are process failures. Here are the mistakes that wreck good bodies.
Underbody wax, asphalt undercoating, and silicone residue resist caustic. Skipping Tank 0 leaves uneven paint strip and forces a second caustic cycle. Always TSP-wash or MEK-wipe first.
Aluminum dissolves in NaOH and evolves hydrogen. Remove EVERY aluminum part before the caustic bath: trim, hood scoops, valve covers, alloy heads, brake brackets, fuel rails.
Bare steel rusts within minutes of leaving the caustic. Move the body from Tank 1 to Tank 2 quickly, or keep it wet with a phosphoric-acid intermediate spray during transfer.
Spent caustic and spent acid neutralize violently. Even at dilute concentration, combining drum-scale waste generates enough heat to boil. Neutralize separately with hazardous-waste contractor guidance.
Even after Tank 3 passivation, bare steel will flash-rust within a day in normal shop humidity. Plan the dip schedule so the body lands in the prime booth the same week it exits Tank 3.
Hardware-store muriatic acid and pool-grade NaOH have impurity profiles that stain bare steel and contaminate the bath. Industrial-grade phosphoric 30%, technical HCl 31%, and membrane-grade NaOH 50% are the working baselines for dipping shops.
The 5 chemicals you need to run your own 3-tank setup
- Tank 0Trisodium Phosphate (TSP) — pre-degrease bath. 50-lb bags available.
- Tank 1Sodium Hydroxide 50% Membrane Grade — the hot caustic strip. Quart through 330-gallon IBC tote.
- Tank 2Phosphoric Acid 30% — primary acid de-rust with passivation. Quart through 330-gallon IBC.
- Tank 2 altHydrochloric Acid 31% Technical Grade — aggressive de-rust for heavy pitting. Quart through 330-gallon IBC.
- Tank 3Oxalic Acid Dihydrate — neutralizing rinse and passivation. 55-lb bags.
Build a 3-tank dipping setup for your restoration shop
Alliance Chemical ships drum, tote, and pail quantities of every chemical in the 3-tank process. Same SDS and COA paperwork that production shops require. Direct freight or LTL to commercial addresses across the U.S.
Order Tank 1 chemistryGet a quote on all 3 tanksRelated: Phosphoric Acid: From Cola to EV Batteries — Uses, Grades & Rust Removal — phosphoric acid is a key stage in multi-tank paint-and-rust stripping.
Frequently Asked Questions
What is car dipping?
Car dipping is a sequential 3-tank chemical immersion process that strips paint and removes rust from whole car bodies and large parts. The body is dunked in a hot sodium hydroxide (NaOH) caustic bath at 200°F to strip paint, then a phosphoric or hydrochloric acid bath to remove rust, then a neutralizing oxalic acid rinse to passivate the bare metal.
Is car dipping safe to do at home?
A small-scale 3-tank setup (5-gallon pails, parts only) is feasible in a well-ventilated outdoor space with proper PPE (full face shield, alkali respirator, elbow-length neoprene gloves, rubberized apron). Whole-body dipping requires production-shop infrastructure including secondary containment, exhaust ventilation, and overhead crane handling, and is not suitable for home garages.
Can I car-dip an aluminum body?
No. Sodium hydroxide aggressively dissolves aluminum and evolves hydrogen gas, which is both a fire/explosion hazard and a metal-loss disaster. Remove all aluminum parts before any caustic dip. Aluminum-intensive vehicles (Tesla X, modern aluminum-body F-150 cabs, some Aston Martins) cannot be caustic-dipped and require alternate stripping methods like media blasting or solvent stripping.
How long does each tank take?
Tank 0 pre-degrease: 15 to 60 minutes. Tank 1 hot caustic: about 2 days of immersion at 200°F to strip a heavily-coated body. Tank 2 acid de-rust: 12 to 24 hours for phosphoric, 1 to 4 hours for hydrochloric. Tank 3 oxalic rinse: 2 to 4 hours. Total process time end-to-end is approximately 3 days for a typical restoration body.
Can I reuse the caustic bath between cars?
Yes. A well-maintained Tank 1 caustic bath cycles through dozens of bodies over a year. Operators skim off paint sludge weekly, add make-up NaOH 50% to maintain concentration as the bath is consumed by paint saponification, and replace the bath entirely when the sludge load becomes unmanageable. Bath chemistry testing (titration to confirm 25 to 30% NaOH) is the standard maintenance practice.
Phosphoric or hydrochloric acid — which one for de-rust?
Phosphoric acid 30% is the default choice for most restoration work. It is mild, self-limiting once rust is consumed, and leaves an iron-phosphate passivation layer that primes well. Hydrochloric acid 31% is reserved for heavy frame rust and deep pitting where speed matters. HCl works faster but pits bare steel if left too long, leaves no passivation layer, and produces significant fumes requiring forced ventilation.
How do I dispose of spent caustic and spent acid baths?
Spent caustic (Tank 1) and spent acid (Tank 2) are EPA RCRA D002 corrosive wastes and must be hauled by a licensed hazardous-waste contractor. Never combine the two spent baths to neutralize each other — the violent exotherm and potential chlorine evolution (with spent HCl) make this dangerous. Most production shops contract a hazmat hauler for quarterly removal of neutralized sludge.
What does it cost to set up a 3-tank car dipping operation?
Chemistry costs scale by tank volume. A DIY 5-gallon-pail setup runs about $530 in chemicals. A mid-tier 55-gallon-drum setup runs about $2,670. A production-shop IBC-tote setup runs about $17,000 in chemistry. Steel tanks, heating, ventilation, and crane infrastructure are separate one-time capital costs. Commercial outsourcing runs $1,500 to $3,000 per whole-body dip.
